| Model | FN12A-S3I |
| Fan Blades / Colour | 9 |
| LED Qty / Type | Center 8PCS，Outer ring 18PCS |
| Dimensions | 120 x 120 x 25mm |
| Bearing Type | Hydraulic Bearing |
| Fan Speed |
800~1600 rpm ± 10% |
| Max. Air Flow | 49.54 CFM |
| Max. Static Air Pressure | 1.52mm - H2O |
| Noise Level (max.) |
31.62db(A) |
| Cable Length |

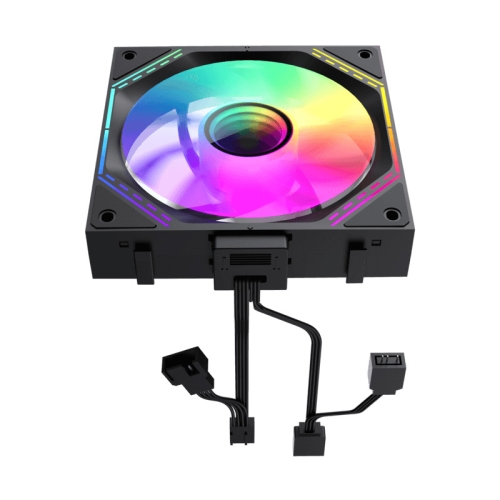

Three fans share a common set of wires, 4pin(M/F) PWM Power / 3pin Aura(M/F),600/600mm |
| Accessories |
Screws x12 |
| Connectors |
4pin(M/F) PWM Power / 3pin Aura(M/F) |
| Rated Voltage | 12V |
| Rated Current (max.) | 0.15A (Max. 0.18A) |
| Rated Input Power | 1.8W(Max. 2.16W) |
| Voltage range | 15-13.8V |
| Start Voltage | 5V |
| M.T.B.F. | 30,000hrs |
