Specifications：
Radiator Dimentions/mm 275（L)×120(W)×52(H)mm
Block Material 12pcs Radiator tubes with 16mm width
Radiator Material Aluminum
TDP 245W
Fan Dimentions/mm 120×120×25mm
Rated Speed.PWM 800-1800RPM±10%
Air Flow 58.8 CFM±10%
Fan Noise Max: 36.9dB(A）
LED Qty / Type: ARGB
Connector 5V 3Pin/ 4Pin PWM
Rated Voltage DC 12V
Fan Pressure 1.82mmH2O±10%
Life 30,000 hours

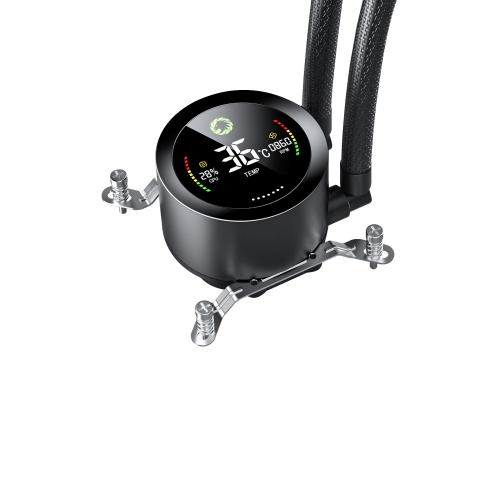

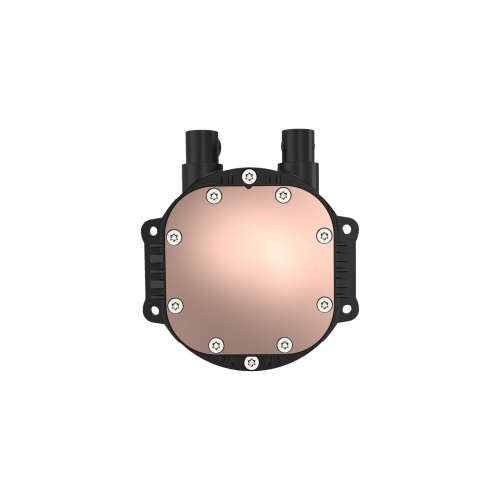

Pump Block Compatibility
Intel LGA1851/1700/20XX/115X/775
AM5 AM4.AM2.AM2+. AM3. AM3+，FM1. FM2. FM2+
Dimentions/mm 66*45mm Round
RPM 2400RPM±10%
Pump Bearing Ceramic core
Noise 26.9dBA
Pump Life Expectancy 40,000Hrs
Pump Connector 2510 3-pin
Pump rated power 4.20W
Pump rated Current 0.25(MAX)
