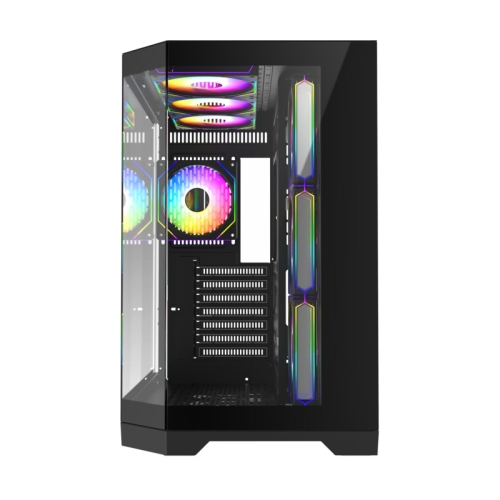

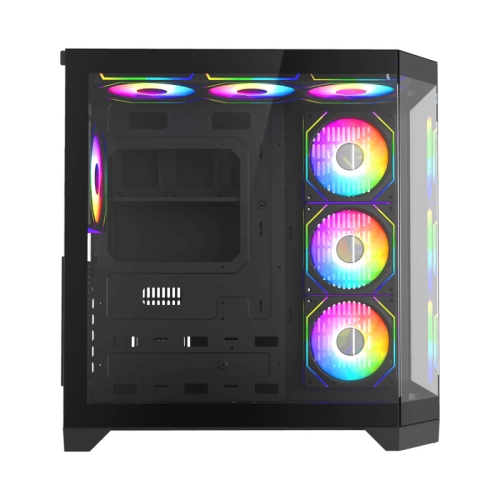

MODEL HYPE-A Black SPECIFICATION
Form Factor (Micro, Mini ITX) MIDI
Chassis 0.5mm SPCC
PSU Form Factor ATX
M/B Form Factor ATX,Micro ATX,Mini-ITX
Front Panel Tempered Glass
Top Panel metal cover
Side Panel Left Full tempered glass
Right Metal
External Drive Bay(s) 5.25" (ODD) NO
Internal Drive Bay(s) 3.5" (HDD) HDD*2
2.5" (SSD) SSD*3
I/O Buttons 3
USB3.0 Port(s) USB3.0*1
USB2.0 Port(s) USB2.0*2
Audio Support Combo Audio*1
Card Reader (Support) Not supported
Fan Controller 6 port ARGB PWM HUB
RGB Controller 6 port ARGB PWM HUB
Controller max. fans 10
Remote (IR or RF) NO
Cooling Fan Support Front NO
Top 120mm*3 or 140mm*2 (FAN Optional)
Rear 120mm*1 (FN12A-S8I*1)
Left Side NO
Right Side 120mm*3（FN12A-S8I*3）
bottom
120mm*3 or 140mm*2(FAN Optional)
Water Cooling Support
(Radiator Size) Right Side 240mm*1,360*1
Top 120mm*1,240mm*1,280*1,360mm*1
Rear 120mm*1
Dust Cover Top and bottom with dust filter
Slots 4
Dimensions Chassis
418*280*410 (L*W*H)mm
Full Case (inc Fascia) 418*280*435 (L*W*H)mm
Net Weight (Kg) 6.7kgs
Gross Weight (Kg) 8.1kgs
VGA Card Length MAX 400mm
CPU Cooler Height 157mm
Cable Management Depth ATX POWER 140/160/200mm
