Form Factor (Midi, Mini,Full) Mini Tower
Chassis SPCC :0.4mm
PSU Form Factor Bottom/ATX
M/B Form Factor M-ATX、ITX
Front Panel ABS
Top Panel /
Branding Box
Unit
(Unit) Position

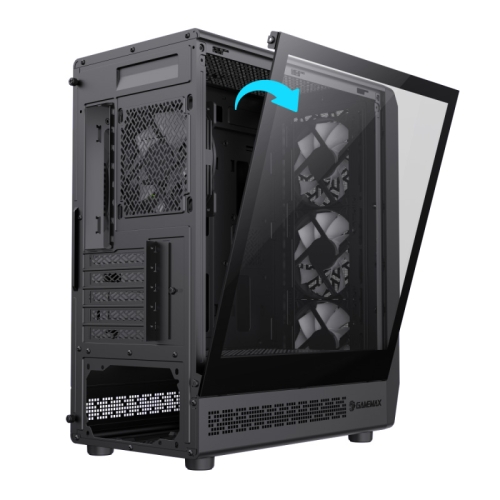

Side Panel Left Tempered Glass
Right metal cover
External Drive Bay(s) 5.25" (ODD) /
3.5" /
Internal Drive Bay(s) 3.5" (HDD) 1*3.5HDD+5*2.5SSD or 2*3.5HDD+3*2.5SSD or 3*3.5HDD+2*2.5SSD or 2*3.5HDD+2*2.5SSD
2.5" (SSD)

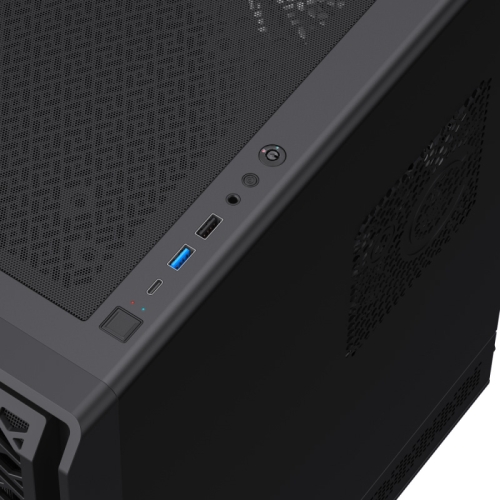

I/O Buttons *2
USB2.0 Port(s) *1
USB3.0 Port(s) *1
HD Audio Support Combo Audio(CTIA)*1
Type C *1(2.0 or GEN1 or GEN2)
P-Lock *1 (optional)
RGB Controller *0
Controller max. fans *0
RGB Controller max. LED strips *0
Remote (IR or RF) *0

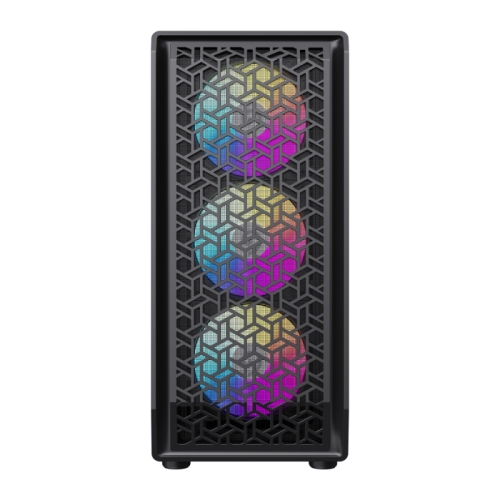

Cooling Fan Support Front 3x120mm
Top /

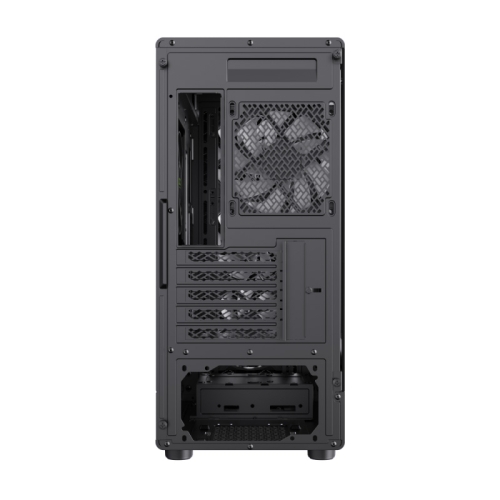

Rear 1x120mm
Left Side /
PSU Cover /
Water Cooling Support
(Radiator Size) Front 120mm, 140mm,240mm,280mm,360mm
Top 120mm, 140mm,240mm
Rear 120mm*1
Dust Cover Bottom and top cover with dust filter
Slots *5
Carton & Logo GAMEMAX
Dimensions Chassis (L)340*(W)200*(H)436mm
Full Case (inc Fascia) (L)386*(W)200*(H)449mm
Carton (L)486*(W)255*(H)433mm
Net Weight (Kg) kgs
Gross Weight (Kg) kgs
VGA Card Length up to 330mm
CPU Cooler Height 155mm
PSU Length up to 160mm
Cable Management Depth 19mm
