Form Factor:
MID TOWER
Chassis:
SPCC 0.8mm
PSU Form Factor:
Bottom/ATX
M/B Form Factor:
ATX、M-ATX、ITX (Support BTF)
Front Panel:
Curved Tempered Glass
Top Panel:

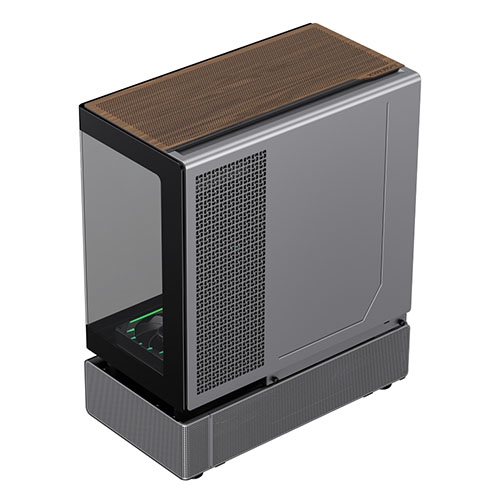

Mesh，wood grain decoration
Side Panel:
Left:
And the front panel curved tempered Glass
Right:
Metal
External Drive Bay(s):
5.25”(ODD):
*0
3.5”:
*0
Internal Drive Bay(s):
3.5" (HDD):
*2(Compatible 2.5SSD)
2.5" (SSD):
*2
I/O:
Buttons:
*1
USB 2.0 Port(s):
*0
USB 3.0 Port(s):
*1
Type C Port(s):
*1 (Gen2)
Audio Support:
*1 Combo Audio
RGB Controller:
*1 (V4.10-24AS CONTROLLER + Remote)
LED SW
*0
Controller Max Fans:
*10
Cooling Fan Support:
Front:
*0
Top:
3x120mm,2x140mm(Optional)
Rear:
1x120mm(Tornado T12 ARGB)
M/B:
2x120mm(Tornado T12 ARGB-R)
Bottom:
3x120mm(Tornado T12 ARGB-R)
Radiator Support:
Front:
N/A
Top:
120mm,140mm,240mm,280mm,360mm
M/B
120mm,240mm
Rear:
120mm
Dust Cover:
Bottom with dust filter, top mesh
Slots:
*7
Dimensions:
Chassis:
(L)439*(W)235*(H)511mm
Full Case (Inc Fascia):
(L)439*(W)240.5*(H)530mm
Carton:
(L)512*(W)310*(H)601mm
Net Weight(kg):
12.95
Gross Weight(kg):
14.55
VGA Support:
up to 415mm
CPU Cooler Height:
175mm
Cable Management Depth:
32mm
PSU:
Not included
Display screen
512 LEDs array
